Wilderness posted this 12 October 2024

My primary shooting interest is hunting. I shoot a couple of hundred hogs a year. My rifle for that is a Savage 99 in .30-30 with Leupold VX-I 2-7 scope. Ammo is all HP cast bullets at full throttle.

Absolutely precise zero is not critical for the hogs, since nearly all my shots are inside 100 meters. I do however shoot the occasional dog as well, and these are both smaller and generally further away, so require better zero.





Amid all the action, the rifle can take the odd knock, leaving me wondering if the zero has survived. Worst of all is missing a shot that should have been good, or wondering if it really was a miss. Doubt as to zero is to me more damaging to performance than impaired zero itself.

One of my better equipment buys has been a Tasco Shot Saver boresighter with a 4 minute grid. Once I have zeroed the rifle, I record the boresighter setting. If subsequently I take a tumble or otherwise come to doubt my zero, I can check for scope movement with the boresighter. If the scope is off then I can deal with it. Otherwise I just keep on shooting with confidence restored.

This system is not totally precise, but it will pick up displacement of more than a minute or two. Scope needs to be on full power (7X) for the check. System does not apply to iron sights.

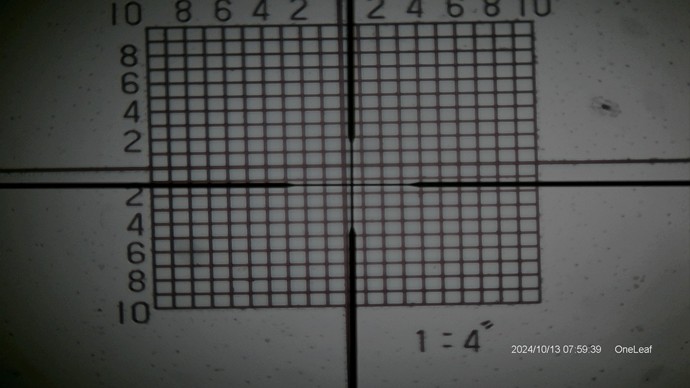

I’m sorry the image is a bit dodgy – another recording experiment with the NV device on the back of the scope with boresighter in place.





You are only as good as your library.

Attached Files

Order By: Standard | Newest | Votes
linoww posted this 13 October 2024

I use mine when I put on scopes. it finds so many problems with scopes and/or base problems before a range trip.

I couldn't live without mine.



As for the bore "spuds " I use a plug(pin)  guages for a good fit

"if it was easy we'd let women do it" don't tell my wife I said that!

Attached Files

  • Liked by
  • Wilderness
Wilderness posted this 13 October 2024

Linoww - good tip on the pin gauges. That's my weak spot - I need a more closely fitting spud to take the variability out of the system.

I used the boresighter, with a scope on the mid point of its adjustments, in rings, when a friend installed the Weaver bases on the M99. That way we got them on as centrally as possible.

I've also used the boresighter when glass bedding a couple of Ruger 77s. In their unbedded state, but after floating, they all showed movement on the boresighter as the action screws were done up, presumably from action flex. That angled screw has a lot to answer for. My bedding system was to set everything to zero on the boresighter with the rifle out of the stock. Then apply the bedding compound, put the rifle into the stock and do up screws in order while watching the boresighter. Back off the moment anything moves on the boresighter. It worked pretty well.

You are only as good as your library.

Attached Files
